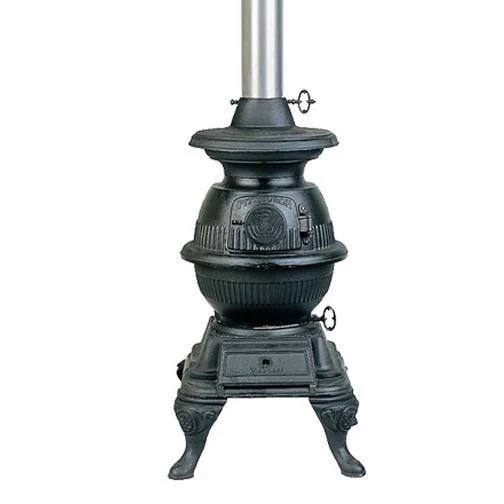

Masport Pittsburgh Mk II Potbelly Stove

Description



Enjoy the traditional feel that comes with the Pittsburgh potbelly stove. The second make of this wood heater model is perfect to add an elegant feel to any medium or large sized areas in your home, while offering less emissions than before.

Features

• Designed to heat medium to large sized areas - up to 150m2
• Radiant circulation
• Efficient cooktop for cooking or boiling water
• Finished in rugged black cast iron
• Ashpan for convenient cleaning
• 10-year extensive firebox warranty under normal use and service
• 1-year warranty on all internal fire parts
• New Zealand design

Specifications

Finish	Black
Firebox Material	Cast Iron
Est. Peak Output	15kW
Approx. Heat Area	150 sq. metres
Emissions	1.5g/kg
Efficiency	68%
Circulation	Radiant
Log Size	300mm

Dimensions

510mm (W) x 580mm (D) x 850mm (H)

Manuals

Masport Pittsburgh Mk II Spec Sheet

Masport Wood Fire Installation Manual

Masport Wood Fire Owners Manual



Flue Options

To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward, vertical, single-storey applications.

The Masport Klondike and Pittsburgh Wood Fires require a non-standard 4.5" active flue which can be ordered over the phone or in store.

Depending on your site specifics you may also need a hearth, or other components that aren’t available on our website.

We have heater experts available in store to give advice for wood heater installations, so if you have any questions call 1300 300 227 or drop into your local outlet.

Standard Flue Kit	Includes
SWH-4515	· Anti-down draught hat SS · 2 x 9” galvanised flue lengths · 2 x 7” galvanised flue lengths · 2 x 4.5” SS flue lengths · 9” ceiling ring galvanised · 2 x 4.5” black painted SS flue lengths · SS half shield



Standard Flashing	Suits
DFE108B	Metal roof, 170-355mm external flue
DNL108B	Tile roof, 175-300mm external flue
